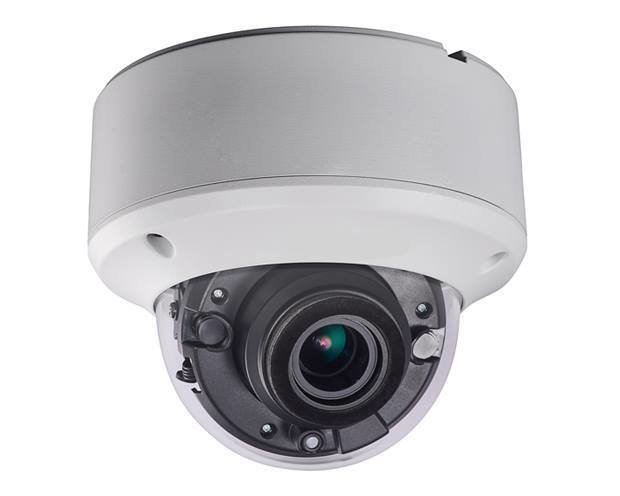

QUBE ALTAMIRA 1080P 2MP MOTORIZED LENS DOME CCTV TVI CAMERA

Daytime Demo:

Nighttime Demo:

Features:

• 2 Megapixel high-performance CMOS

• Analog HD output, up to 1080P resolution

• 2.8 – 12mm motorized vari-focal lens

• True Day/Night, Smart IR

• Up to 40m IR distance

• IP66 weatherproof& Vandalproof

• OSD menu

Specification

• Image Sensor: 2MP CMOS Image Sensor
• Effective Pixels:1930(H) × 1088(V)
• Min. Illumination:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
• Shutter Time:1/25 to 1/50,000 s

Lens

• Lens: Motorized VF lens; 2.8 - 12 mm @ F1.4, Angle of view: 114.5°- 35.1°
• Lens Mount: 14
• Adjustment Range:Pan: 0 - 355°, Tilt: 0 - 75°, Rotation: 0 - 355°
• Day& Night: IR cut filter with auto switch
• Video Frame Rate: 1080p@25fps/1080p@30fps
• HD Video Output:1 Analog HD output
• Synchronization:Internal Synchronization
• S/N Ratio:More than 62 dB

Menu

• Camera ID: On/Off (0-255)

• D/N Mode:Color/ BW/ Auto/ EXT
• Auto White Balance:Auto/User/Push/8000K/6000K/4200K/3000K
• Motion Detection:On/Off, maximum 4 zones
• BLC:On/Off / AGC: Support
• Language:English/Chinese
• Function: Digital noise reduction, Mirror

General

• Operating Conditions:-20 °C - 45 °C (-4 °F - 113 °F)
• Humidity 90% or less (non-condensing)
• Power Supply:12 VDC±15%
• Power Consumption:Max. 4.5W
• Weather Proof:IP66
• Impact Protection: IK10
• IR Range: Up to 40m
• Communication : Up the coax
• Dimension: Φ 145.2 × 124.1 mm (Φ 5.72” × 4.9”)
• Weight: 1350g
